Description
Specification :

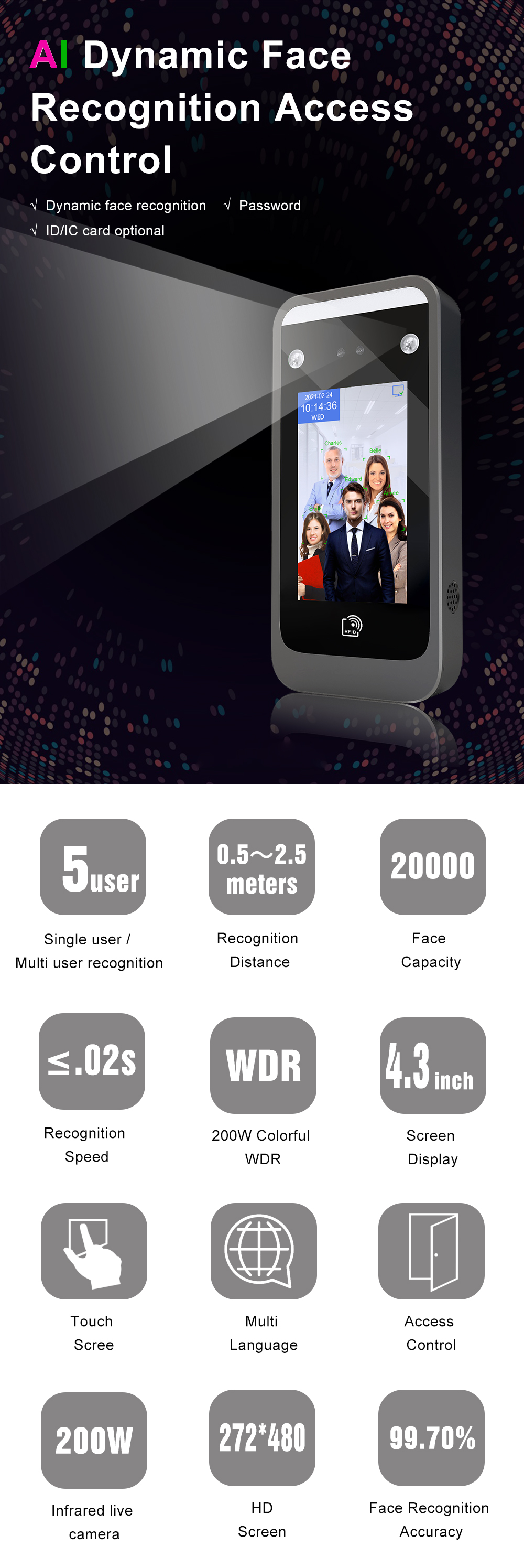

Deltons XD306 is a biometric Access Control and Attendance system with the latest facial recognition engine (Dynamic Face Recognition) and RFID Card. This sophisticated facial recognition biometric recognition system recognizes the characteristics of each employee’s face and records them in memory.
Facial recognition engine algorithms are generally carried out by analyzing the position, size, shape of the eyes, nose, cheekbones, and jaws. This feature is then used to search for images in memory with the appropriate features. Another technique is to use 3D sensors to capture information about the shape of the face. This information is then used to identify features on the facial surface, such as the contours of the eyes, nose, and chin.
The advantages of this XD-306 Dynamic Face Recognition:

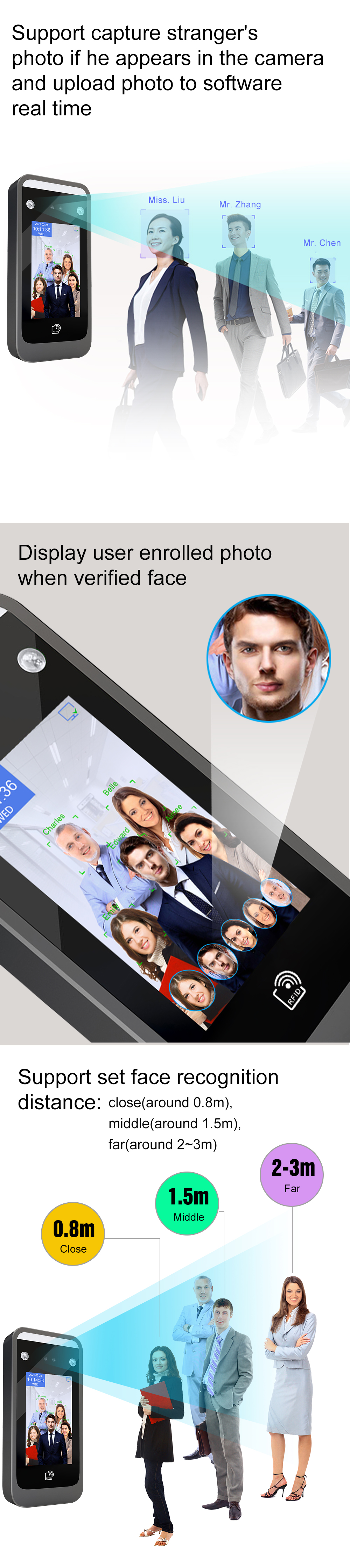

- Can detect faces even when they are moving.

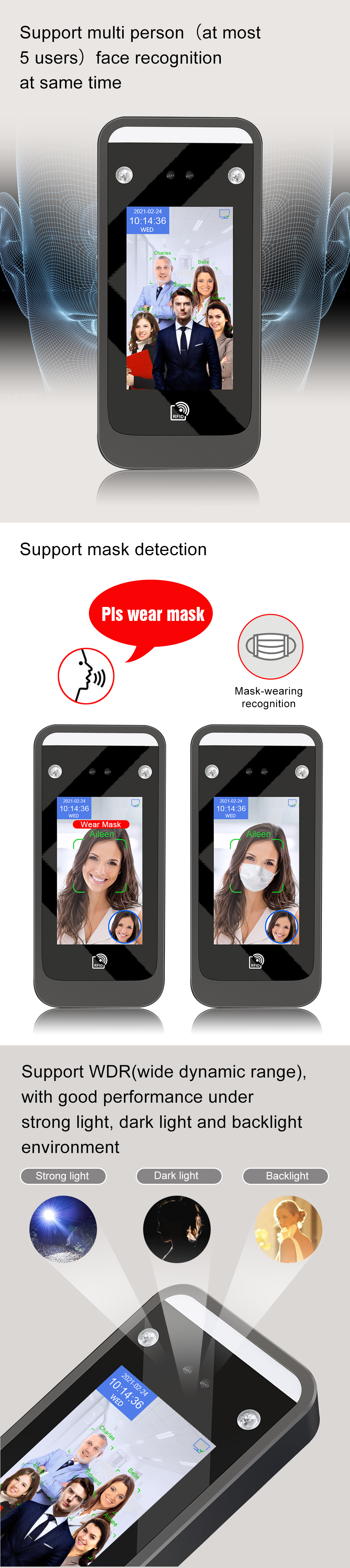

- Can detect and track 5 people simultaneously displayed on the screen.
- Can recognize with flexible distance from 0.5 meter ~ 2.5 meter
- Can work well in the sun and in the dark night.
- Can learn facial changes automatically such as changing hairstyles, wearing glasses, wearing masks or using Hijab.
| Screen | 4.3 Inch. HD 272*480, Capacitive Touch Screen |
| Keypad | Touch keypad |
| Operation system | LINUX 3.10 |
| CPU.NPU | 1.2G Dual-Core ARM Cortex-A7, 600G (O 6T) |
| RAM | 256MB DDR3 |
| ROM | eMMC Flash 4GB |
| Binocular camera | 200W Colorful WDR+200W Infrared live camera |
| Logs capacity | 500000 |
| Face Registration | Local operation : Enroll face with machine, import user photo with U disk Software operation: Import user photo to software, capture user photo with camera |
| Verif ication | Dynamic face recognition, password, ID/IC card optional |
| Face capacity | 20000 |
| Card Capacity | 20000, ID Card Standard, IC Card Optional |
| Password Capacity | 20000 |
| Face Recognition Accuracy | 99.70% |
| Recognition Speed | $0.2s, support single user/multi user(at most 5 users) recognition at same time |
| Recognition Distance | 0.5-2 5 meters (0.5-1.5 meters with live face recognition on) |
| Prevent Photo | Dual camera anti-counterfeiting, prevent recognition with photo/video |
| Principle of Identification | Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition |
| WDR | Wide dynamic range,support accurate face recognition under Strong light, dark hght and backlight |
| USB | USB2.0 x 1, Support U disk import/export data |
| Power supply | DC12V interface x 1 |
| Speaker Interface | Reserved for extended Speaker Interface |
| Network Communication | TCP/ IP. Support C/S LAN communication. Wifi (optional) |
| Free At1endance software | Support exporting excel attendance report with U disk |
| Shift | Support shift setting and importing shift schedule with U disk |
| Management Software | Support PC software to manage data through network connection with equipment |
| Access Control Function | Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals, one set of alarm signals, time permission control, connect external access control reader, Wiegand 26134 output input |
| Environmental adaptability | Working temperature: -15°C”‘-‘+45°C (storage temperature -40°(“‘-‘+65°C) ‘ Working humidity: 20%”‘-‘90% (storage humidity 20%”‘-’90±2%) , Dark enviroment : LED Soft light automatic fill light (Automatic control according to ambient light) Ambient light adaptation range: 0-50000Lux |
| Multi language | English, Spanish, Arabic, Thai.Farsi, Portuguese. French. Italian. Japanese. Korean. etc |
| Broadcase and ring | Support display name, voice broadcase name,builtin bell ring |
| Automatic fill light | Support infrared fill light, the white fill light automatically lights up when face is captured in dark light |
| Working Current | stand-by current: 310mA ,Working current: 520mA |
| QR Code Scanner | Support |
| Working Voltage | DC12V |
| Installation Way | Standard: Wall mount, desktop stand; Optional. bracket for turnstile,floor stand |
| Device Dimension | 187.5×87.5x26mm |
| Color box dimension | 257x171x90mm |
| Carton dimension | Size: 480x 438x229mm, 12Kg/carton, 1Ounits/carton |
